Product Details:
|
Model NO.: | FD18 | Lift Height: | 3000~5000mm |
---|---|---|---|
Condition: | New | Free Lifting Height: | 115mm |
Fork Size: | 1070*122*40mm | Mast Tilt Angle: | 6/12 Degree |
Min. Ground Clearance: | 150mm | Overhead Guard Height: | 2040mm |
Front Overhang: | 400mm | The Turning Radius: | 2060mm |
Transport Package: | Nude Package | Trademark: | SNSC |
Origin: | China | HS Code: | 84270290 |
Supply Ability: | 100 Sets Per Month | Cab Location: | Not Adjustable |
Type: | Diesel Forklift | Power: | Diesel Engine |
Load Capacity: | 1T - 5T | Fuel: | Diesel |
Load Center: | 500mm | Customization: | Available | Customized Request |
Highlight: | 3.5 Ton Diesel Forklift Lift Trucks,Diesel Forklift Lift Trucks SNSC,SNSC Forklift 3000mm Lift Height |
Specifications | Unit | FD18 | ||
Features | Power type | Diesel | ||
Rated load | kg | 1800 | ||
Load center | mm | 500 | ||
Lifting height | mm | 3000 | ||
Free lifting height | mm | 115 | ||
Fork size | L*W*T | mm | 1070*122*40 | |
Mast tilt angle | Front/Rear | . | 6/12 | |
Min. turning radius | mm | 2060 | ||
Min.ground clearance | Mast | mm | 150 | |
Overhead guard height | mm | 2040 | ||
Front overhang | mm | 400 | ||
Performance | Max. travelling speed | loaded | km/h | 14.5 |
Max. lifting speed | loaded/empty | mm/s | 460/520 | |
Max. traction force | loaded | KN | 16 | |
Max. climbing ability | % | 20 | ||
Dimension | Overall length | without fork | mm | 2250 |
Overall width | mm | 1080 | ||
Mast lowered height | mm | 1955 | ||
Mast extended height | mm | 3860 | ||
Chassis | Tyre | Front | 6.50-10-10PR | |
Rear | 5.00-8-10PR | |||
Wheel base | mm | 1400 | ||
Wheel thread | Front/Rear | mm | 890/920 | |
Weight(without load) | kg | 2980 | ||
Powertrain | Battery | V/AH | 12/90 | |

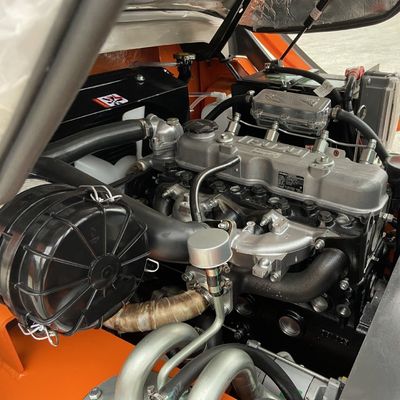

Engine | Model | NC485BPG/ISUZU C240 | ||
Rated power | km/r.p.m | 30/2600 | ||
Rated torque | Nm/r.p.m | 131/1800 | ||
No. cylinder | 4 | |||
Bore x stroke | mm | 85x100 | ||
Displacement | L | 2.27 | ||
Fuel tank capacity | L | 45 | ||
Transmission/shift | 1/1 automatic transmission | |||
Operation pressure | Mpa | 14.5 |
