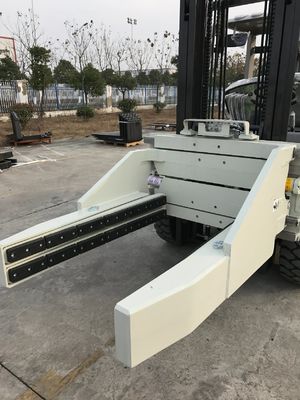

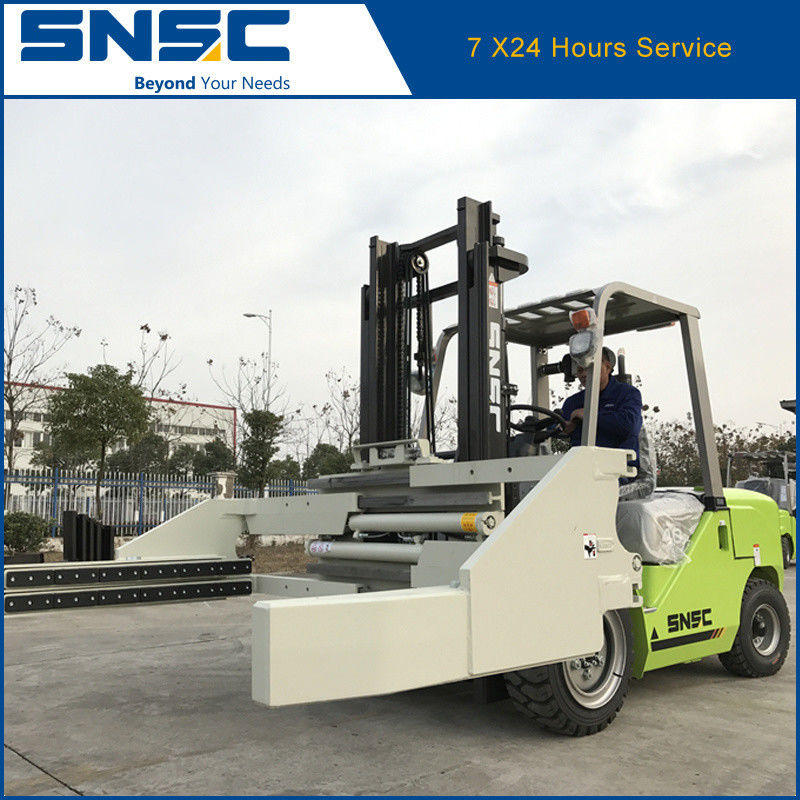

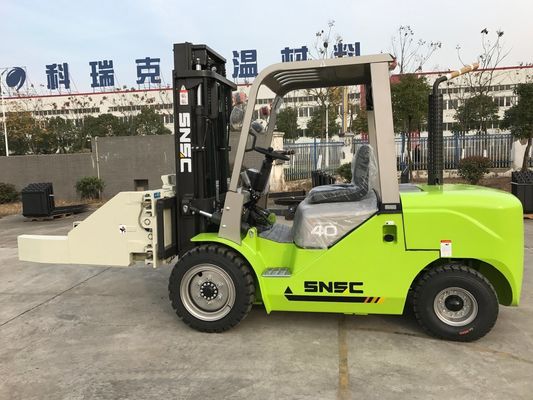

brick diesel forklift with block clamp attachment
If you have any demands, warmly welcome to inquire Nicole more detials,
Description:
1- Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
2- Japan hydraulic system, by using Shimadzu brand Valve and Pump;
3- USA Eaton steering gear;
4- LED light& Protection , with long durability time;
5- Copper Radiator, with better heat radiation;
6- Red/yellow/green and all kinds of customized colors for your reference;
7- Standard duplex mast, optional 3M-7M duplex / triplex mast;
8 - Standard China engine, optional Japan engine;
9-Red/ Yellow/ Green colors for your choice.
Common Optionals:
Japan Isuzu/Mitsubishi engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.
Container Package Method:
Mini 4 ton diesel forklift package: 20GP container can hold 2 units,40GP container can hold 4 units;
Big 4 ton diesel forklift package: 40HC container can hold 3 units.
Specifications:
| Specifications |
Unit |
FD40 |
| 1 |
Characteristics |
Power |
- |
diesel |
| 2 |
Rated Capacity |
kg |
4000 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
85 |
146 |
| 6 |
Forks L×W×H |
mm |
1070x125x50 |
1070×150×50 |
| 7 |
Tilt Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2700 |
2760 |
| 9 |
Min.ground clearance(Mast) |
mm |
120 |
160 |
| 10 |
Overhead guard height |
mm |
2090 |
2350 |
| 11 |
Height from seat to overhead guard |
mm |
1005 |
1040 |
| 12 |
Front overhang |
mm |
500 |
558 |
| 13 |
Performance |
Max.traveling speed(loaded) |
km/h |
19.5 |
18 |
| 14 |
Max.lifting speed(loaded/empty) |
mm/s |
415/440 |
380/400 |
| 15 |
Drawback pull/Grade ability |
kN/% |
20/20 |
22/20 |
| 16 |
Dimensions |
Overall length (without fork) |
mm |
2930 |
3060 |
| 17 |
Overall width |
mm |
1410 |
1490 |
| 18 |
Mast lowered height |
mm |
2155 |
2355 |
| 19 |
Mast extended height |
mm |
4275 |
4257 |
| 20 |
Chassis |
Tire |
Front |
- |
250-15-160PR |
8.25-15-14PR |
| 21 |
Rear |
- |
6.50-10-10PR |
7.00-12-12PR |
| 22 |
Wheelbase |
mm |
1900 |
2000 |
| 23 |
Tread width |
Front/Rear |
mm |
1160/1065 |
1180/1190 |
| 24 |
Curb weight |
None-load |
kg |
5300 |
6090 |
| 25 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
12/90 |
(12/90)×2 |
| 26 |
Engine |
Model |
- |
XC498BPG |
QC 4JR3 |
| 27 |
Rated power |
kw/r.p.m |
45/2500 |
48/2300 |
| 28 |
Rated torque |
Nm/r.p.m |
193/1600-1800 |
230/1600-1800 |
| 29 |
Cylinder amount |
- |
4 |
4 |
| 30 |
Bore×Stroke |
mm |
98x105 |
98x115 |
| 31 |
Displacement |
- |
3.168 |
3.47 |
| 32 |
Fuel tank |
L |
80 |
100 |
| 33 |
Transmission |
1/1 automatic transmission |
| 34 |
Working pressure |
MPa |
17.5 |
18.5 |
Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.
We regarde "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
