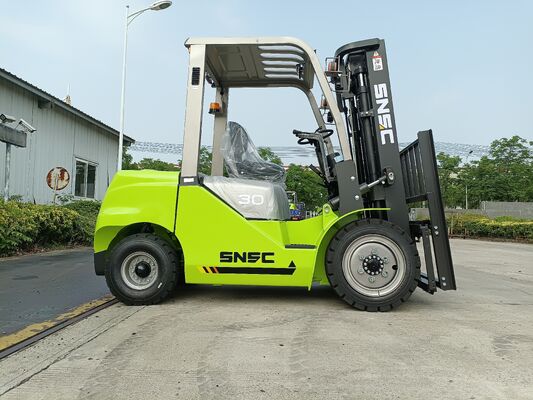

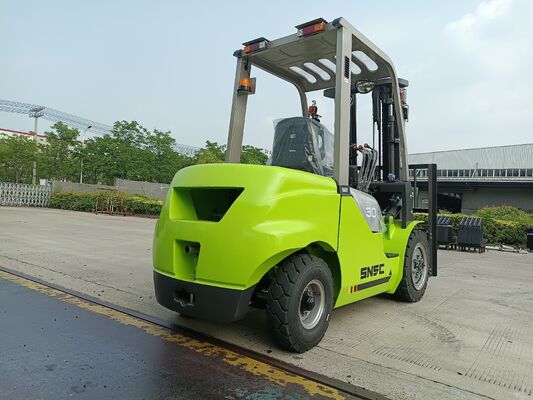

3 Ton Diesel Counterbalance Forklift
Reliable Load Capacity 3000kg with Comfortable Operator Cabin
Product Overview
The SNSC FD30 Diesel Forklift offers powerful lifting performance, excellent fuel efficiency, and outstanding durability. Its heavy-duty structure and stable operation make it a dependable solution for all types of material-handling tasks.
Function & Characteristics
This model features a 3000 kg load capacity, a robust diesel engine, an optimized hydraulic system, and an ergonomic operator layout. The wide-view mast and durable frame enhance safety and stability, even under continuous heavy loads.
Where It Works Best
From warehouses and workshops to construction sites and outdoor yards, the FD30 performs efficiently in loading, stacking, transferring, and lifting a wide variety of materials.
How It Works
The engine drives the hydraulic pump to create pressure for lifting and tilting the mast. Combined with precise steering and braking systems, the forklift maintains smooth and controlled operation at all times.
Technical Specifications
| Specification |
Unit |
FD30 |
| Power |
-- |
diesel |
| Rated Capacity |
kg |
3000 |
| Center of load |
mm |
500 |
| Lifting height |
mm |
3000 |
| Free lifting height |
mm |
145 |
| Forks L×W×H |
mm |
1070×125×45 |
| Tilt Forward/Backward |
. |
6/12 |
| Min. turning radius |
mm |
2600 |
| Min. ground clearance (Mast) |
mm |
120 |
| Overhead guard height |
mm |
2170 |
| Front overhang |
mm |
545 |
| Max. traveling speed (loaded) |
km/h |
20 |
| Max. lifting speed (loaded/empty) |
mm/s |
470/520 |
| Drawback pull/Grade ability |
kN/% |
18/20 |
| Overall length (without fork) |
mm |
2825 |
| Overall width |
mm |
1230 |
| Mast lowered height |
mm |
2065 |
| Mast extended height |
mm |
4260 |
| Tire - Front |
-- |
28×9-15-12PR |
| Tire - Rear |
-- |
6.50-10-10PR |
| Wheelbase |
mm |
1800 |
| Tread width - Front/Rear |
mm |
1000/970 |
| Curb weight (None-load) |
kg |
4250 |
| Battery - Voltage/Capacity |
V/Ah |
12/90 |
| Engine Model |
-- |
XC490BPG |
| Rated power |
kw/r.p.m |
37/2650 |
| Rated torque |
Nm/r.p.m |
148/2000 |
| Cylinder amount |
-- |
4 |
| Bore×Stroke |
mm |
90×105 |
| Displacement |
-- |
2.54 |
| Fuel tank |
L |
70 |
| Transmission |
-- |
1/1 automatic transmission |
| Working pressure |
MPa |
17.5 |
Key Features
- Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward
- Japan hydraulic system, by using Shimadzu brand Valve and Pump
- USA Eaton steering gear
- LED light, with long durability time
- Copper Water tank, with better heat radiation
- Red/yellow/green colors for your reference
Common Optional Features
Japan Isuzu/Mitsubishi engine, Side shifter, Double front tires, Solid tire, Double air filter, Vertical exhaust, fork extension, Cab, Fork positioner.
