3 Ton Diesel Counterbalance Forklift with 3000kg Load Capacity, Comfortable Operator Cabin, and Smooth Hydraulic Lift

Large Image : 3 Ton Diesel Counterbalance Forklift with 3000kg Load Capacity, Comfortable Operator Cabin, and Smooth Hydraulic Lift

Product Details:

Place of Origin:	China
Brand Name:	SNSC
Certification:	CE POCNC ERC CNAS
Model Number:	SNSC FD30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	5900USD
Packaging Details:	2set/20GP 5Set/40HQ
Delivery Time:	7-30 working days
Payment Terms:	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability:	10000 set per month

Contact Now Chat Now

3 Ton Diesel Counterbalance Forklift with 3000kg Load Capacity, Comfortable Operator Cabin, and Smooth Hydraulic Lift

Description

Type:	Diesel Forklift	Engine Type:	Diesel
Rated Capacity:	3000kg	Engine:	Cummins / KUBOTA / XinchaI A498BPG/Perkins/Yanmar
Attachments:	Different Attachments Are Available	Condition:	New
Warranty:	ONE YEAR	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation
Color:	Customer's Requiement
Highlight:	3 ton diesel forklift with operator cabin , 3000kg capacity diesel forklift , counterbalance forklift with reliable load capacity

SNSC FD30 3-Ton Diesel Forklift Truck

Heavy-duty 3000kg load capacity with smooth hydraulic lift system for demanding industrial applications.

Product Overview

The SNSC FD30 3-Ton Diesel Forklift is engineered to perform reliably in demanding real-world environments with strong load capacity, stable structure, and smooth hydraulic lift ideal for high-frequency and heavy-duty operations.

Key Features & Benefits

With a 3000 kg load capacity and powerful diesel engine, this forklift delivers stable lifting, excellent traction, and long-lasting performance. Ergonomic design reduces operator fatigue for extended work shifts.

Ideal Application Scenarios

Moving pallets in large warehouses
Loading containers at ports and docks
Stacking goods in manufacturing plants
Transporting materials at construction sites
Handling heavy cargo in logistics yards

Working Principle

The forklift uses an internal combustion diesel engine to power a hydraulic system. High-pressure hydraulic oil moves the mast and forks, allowing smooth lifting and lowering, while the mechanical drivetrain provides forward and reverse motion.

Technical Specifications

Specification	Unit	FD30
Power	--	diesel
Rated Capacity	kg	3000
Center of load	mm	500
Lifting height	mm	3000
Free lifting height	mm	145
Forks L×W×H	mm	1070×125×45
Tilt Forward/Backward	.	6/12
Min.turning radius	mm	2600
Min.ground clearance(Mast)	mm	120
Overhead guard height	mm	2170
Front overhang	mm	545
Max.traveling speed(loaded)	km/h	20
Max.lifting speed(loaded/empty)	mm/s	470/520
Drawback pull/Grade ability	kN/%	18/20
Overall length (without fork)	mm	2825
Overall width	mm	1230
Mast lowered height	mm	2065
Mast extended height	mm	4260
Tire Front	--	28×9-15-12PR
Tire Rear	--	6.50-10-10PR
Wheelbase	mm	1800
Tread width Front/Rear	mm	1000/970
Curb weight None-load	kg	4250
Battery Voltage/Capacity	V/Ah	12/90
Engine Model	--	XC490BPG
Rated power	kw/r.p.m	37/2650
Rated torque	Nm/r.p.m	148/2000
Cylinder amount	--	4
Bore×Stroke	mm	90×105
Displacement	--	2.54
Fuel tank	L	70
Transmission	--	1/1 automatic transmission
Working pressure	MPa	17.5

Premium Components

Auto electric hydraulic transmission by TCM technology
Japan hydraulic system using Shimadzu brand Valve and Pump
USA Eaton steering gear
LED lighting with extended durability
Copper water tank for superior heat radiation
Available in red, yellow, and green colors

Optional Features

Japan Isuzu/Mitsubishi engine, Side shifter, Double front tires, Solid tire, Double air filter, Vertical exhaust, Fork extension, Cab, Fork positioner.

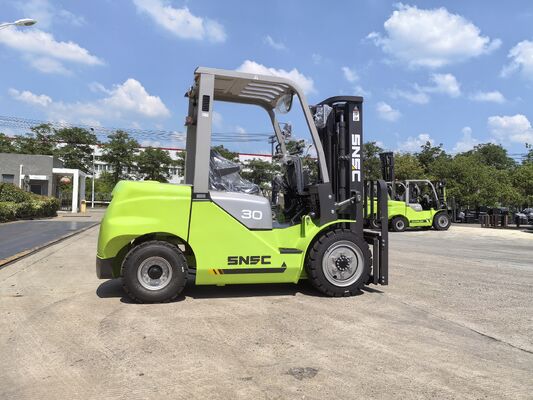

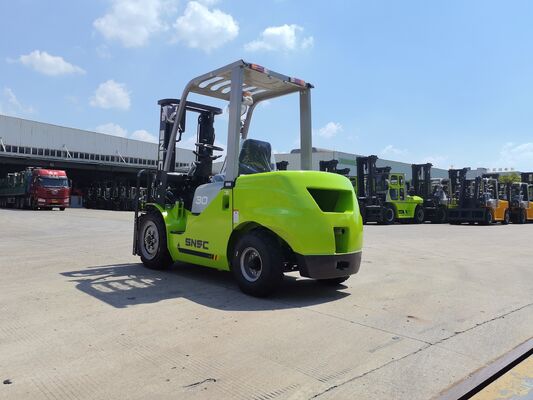

Product Images
