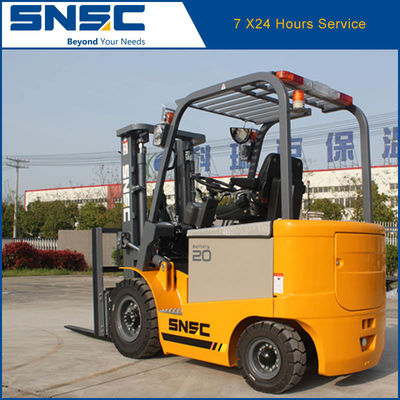

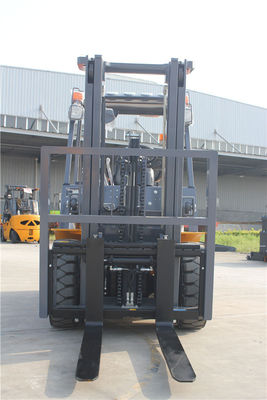

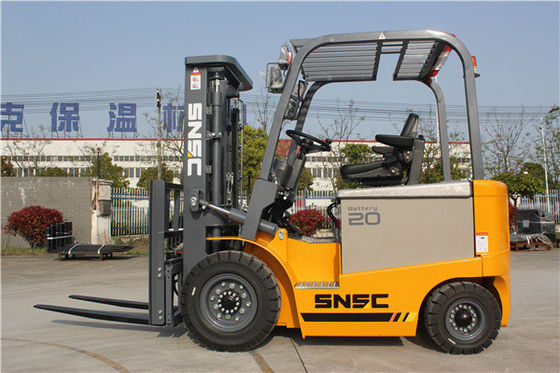

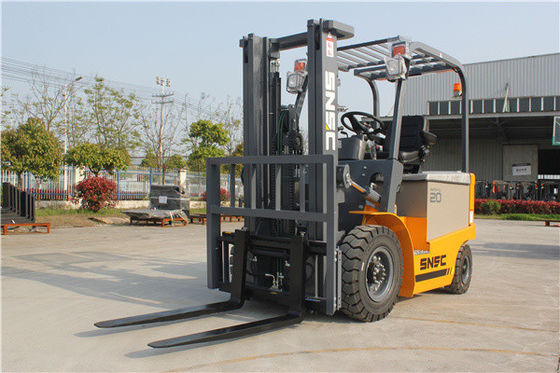

2 ton full electric forklift with AC motor
Description:
(1)AC motor makes forklift have longer working life and easy to maintenance;
(2)Auto electric hydraulic transmission by TCM technology,just use your finger can achieve the forklift's forward and backward;
(3)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(4)USA Eaton steering gear;
(5)The controller is USA CURTIS imported controller, more reliable and enjoy global after-sale service.
(6)Intelligent charger is included;
(7)Red/yellow/green colors for your reference.
Common Optionals:
German HOPPECKE battery,Side shifter,Solid tire,fork extension,Fork positioner.
Container Package Method:
2-2.5 ton electric forklift package:20GP container can hold 3 units,40GP container can hold 6 units;
| Specifications |
Unit |
FB25 |
| 1 |
Characteristics |
Power |
- |
battery |
| 2 |
Capacity |
kg |
2500 |
| 3 |
Center of load |
mm |
500 |
| 4 |
Lifting height |
mm |
3000 |
| 5 |
Free lifting height |
mm |
145 |
| 6 |
Forks L×W×H |
mm |
1070×122×40 |
| 7 |
Mast tilt angle Forward/Backward |
. |
6/12 |
| 8 |
Min.turning radius |
mm |
2090 |
| 9 |
Min. right angle stacking width |
mm |
3760 |
| 10 |
Min. right angle Aisle width |
mm |
2040 |
| 11 |
Min.ground clearance |
mm |
110 |
| 12 |
Overhead guard height |
mm |
2150 |
| 13 |
Height from seat to overhead guard |
mm |
1005 |
| 14 |
Front overhang |
mm |
470 |
| 15 |
Performance |
Max.traveling speed(loaded) |
km/h |
13 |
| 16 |
Max.lifting speed(loaded/unload) |
mm/s |
270 |
300 |
| 17 |
Gradeability |
% |
15 |
| 18 |
Dimensions |
Overall length (without fork) |
mm |
2310 |
| 19 |
Overall width |
mm |
1150 |
| 20 |
Mast extended height(with bracket) |
mm |
4030 |
| 21 |
Mast lowered height |
mm |
1990 |
| 22 |
Chassis |
Tire |
Front |
- |
7.00-12-12PR |
| 23 |
Rear |
- |
18×7-8-14PR |
| 24 |
Wheelbase |
mm |
1450 |
| 25 |
Tread width |
Front/Rear |
mm |
960/950 |
| 26 |
Curb weight |
None-load |
kg |
4050 |
| 27 |
Powertrain |
Battery |
Voltage/Capacity |
V/Ah |
48/630 |
| 28 |
Motor |
Traveling |
KW |
11 |
| 29 |
Lifting |
KW |
14 |
| 30 |
Controller |
CURTIS |
| 31 |
Control type |
100%AC |
| 32 |
Working pressure |
Mpa |
17.5 |
