Fuel Efficient 3.5T Diesel Forklift Truck with USA Curtis Controller and Japan Hydraulic System

Name: Fuel Efficient 3.5T Diesel Forklift Truck with USA Curtis Controller and Japan Hydraulic System
Brand: Jinan Shine International Trade Co., Ltd.
SKU: FB25
Availability: InStock

All Products

Diesel Forklift
(56)

LPG Gas Forklift
(17)

Rough Terrain Forklift
(10)

Electric Forklift
(36)

Electric Reach Truck
(6)

Electric Stacker Truck
(8)

Telescopic Forklift Telehandler
(8)

Electric Pallet Truck
(10)

Telescopic Boom Lifts
(8)

Aerial Working Platform
(6)

Certification

I'm Online Chat Now

Fuel Efficient 3.5T Diesel Forklift Truck with USA Curtis Controller and Japan Hydraulic System

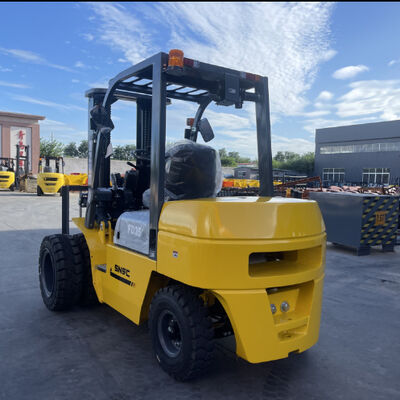

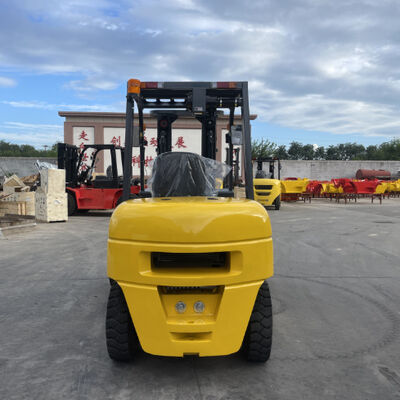

Large Image : Fuel Efficient 3.5T Diesel Forklift Truck with USA Curtis Controller and Japan Hydraulic System

Product Details:

Place of Origin:	china
Brand Name:	snsc
Certification:	CE/ISO
Model Number:	FB25

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	shipped by container
Delivery Time:	30-45 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500/Months

Contact Now Chat Now

Fuel Efficient 3.5T Diesel Forklift Truck with USA Curtis Controller and Japan Hydraulic System

Description

Model NO.:	FD35	Lift Height:	3000-5000mm
Condition:	New	Controller:	USA Curtis Controller
Hydraulic System:	Japan Hydraulic System	Gear:	USA Eaton Steering Gear
Spare Parts:	Free Filters And Seals Maintance Parts	Seat:	Lusury Suspension Seat
Transmission:	Automatic Transmission	Mirror:	3 Way Wider Back Mirror
Color:	Yellow/ Green/ Red	Transport Package:	Container Package
Specification:	3000kg Load Capacity	Origin:	China
HS Code:	84271090	Supply Ability:	8000set/Year
Cab Location:	Adjustable	Type:	Diesel Forklift
Load Capacity:	1T - 5T	Load Center:	500mm
Customization:	Available \| Customized Request	Minimum Ground Clearance:	120mm
Free Height:	3000mm	Application:	Widely
Fork Size:	107015050mm	Wheelbase:	1720 MM
Machinery Test Report:	Provided	Warranty:	1 Year
Steering Gear:	USA Eaton Brand Steering Gear	Ground Clearance:	115mm
Operating Mode:	Standing Operation
Highlight:	3.5T diesel forklift for manufacturing , fuel efficient forklift for logistics , electric forklift with high capacity

Fuel Efficient 3.5T Diesel Forklift For Manufacturing Plants And Logistics Centers

Product Overview

3.5 Ton Diesel Forklift designed for demanding industrial applications in manufacturing plants and logistics centers.

Key Features

AC motor for extended working life and easy maintenance
Auto electric hydraulic transmission with TCM technology for effortless forward/backward operation
Japan hydraulic system using Shimadzu brand Valve and Pump
USA Eaton steering gear
USA CURTIS imported controller with global after-sale service
Intelligent charger included
Available in red, yellow, and green colors

Optional Features

German HOPPECKE battery
Side shifter
Solid tire
Fork extension
Fork positioner

Packaging Specifications

3-3.5 ton electric forklift package: 20GP container can hold 2 units, 40GP container can hold 5 units.

Technical Specifications

Specification	Unit	FD35
Characteristics - Power	-	Diesel
Capacity	kg	3500
Center of load	mm	500
Lifting height	mm	3000
Free lifting height	mm	145
Forks LWH	mm	107012545
Mast tilt angle Forward/Backward	.	6/12
Min. turning radius	mm	2245
Min. right angle stacking width	mm	3930
Min. right angle Aisle width	mm	2120
Min. ground clearance	mm	120
Overhead guard height	mm	2170
Height from seat to overhead guard	mm	1005
Front overhang	mm	475
Performance - Max. traveling speed (loaded)	km/h	13.5
Max. lifting speed (loaded/unload)	mm/s	280 \| 320
Gradeability	%	15
Dimensions - Overall length (without fork)	mm	2511
Overall width	mm	1225
Mast extended height (with bracket)	mm	4264
Mast lowered height	mm	2055
Chassis - Tire - Front	-	28*9-15-12PR
Chassis - Tire - Rear	-	18*7-8-14PR
Wheelbase	mm	1600
Tread width - Front/Rear	mm	1000/980
Curb weight - None-load	kg	4810
Powertrain - Battery - Voltage/Capacity	V/Ah	80/500
Motor - Traveling	KW	12
Motor - Lifting	KW	14
Controller	-	CURTIS
Control type	-	100%AC
Working pressure	Mpa	17.5

Manufacturer Profile

We are China's top forklift manufacturer and logistics solution supplier, with 130,000 square meters production area, 30,000 units production capacity per year, and 5,000 sets export volume.

We have established a complete sales system focused on production, development, marketing, sales, and after-sale service.

Quality leading the future. Our forklift quality has won high praise from overseas clients. You will be satisfied with our products when you receive them.

If you have any demands, warmly welcome to inquire Nicole for more details.
