3 Ton Electric Forklift with USA Curtis Controller and Japan Shimadzu Hydraulic System

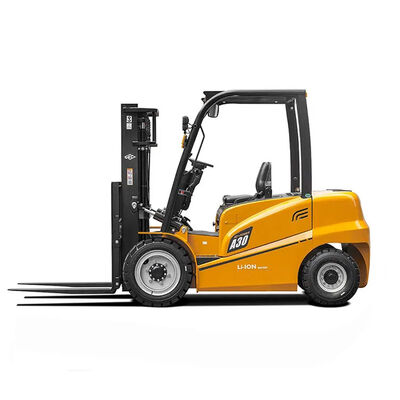

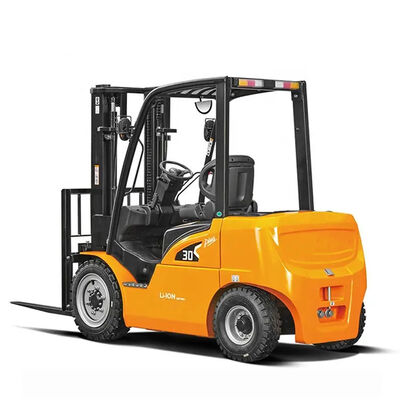

Large Image : 3 Ton Electric Forklift with USA Curtis Controller and Japan Shimadzu Hydraulic System

Product Details:

Place of Origin:	china
Brand Name:	snsc
Certification:	CE/ISO
Model Number:	FB25

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiable
Packaging Details:	shipped by container
Delivery Time:	30-45 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500/Months

Contact Now Chat Now

3 Ton Electric Forklift with USA Curtis Controller and Japan Shimadzu Hydraulic System

Description

Model NO.:	FB25	Lift Height:	3000-5000mm
Condition:	New	Controller:	USA Curtis Controller
Hydraulic System:	Japan Shimadzu Hydraulic System	Gear:	USA Eaton Steering Gear
Spare Parts:	Free Filters And Seals Maintance Parts	Seat:	Lusury Suspension Seat
Transmission:	Automatic Transmission	Mirror:	3 Way Wider Back Mirror
Color:	Yellow/ Green/ Red	Transport Package:	Container Package
Specification:	3000kg Load Capacity	Origin:	China
HS Code:	84271090	Supply Ability:	8000set/Year
Cab Location:	Adjustable	Type:	Electric Forklift
Power:	AC Motor	Load Capacity:	1T - 5T
Fuel:	Electric	Load Center:	500mm
Customization:	Available \| Customized Request	Minimum Ground Clearance:	120mm
Free Height:	3000mm	Application:	Widely
Operating System:	Electric	Battery Brand:	Lead-acid Battery
Fork Size:	107015050mm	Wheelbase:	1720 MM
Machinery Test Report:	Provided	Warranty:	1 Year
Steering Gear:	USA Eaton Brand Steering Gear	Ground Clearance:	115mm
Operating Mode:	Standing Operation
Highlight:	3 ton electric forklift truck , electric forklift fast charging , durable electric forklift design

3 Ton Electric Forklift Truck - Long Working Time, Fast Charging, Durable Body Design

Product Overview

3 Ton Electric Counterbalance Forklift with advanced features for industrial applications.

Key Features

AC motor for longer working life and easy maintenance
Auto electric hydraulic transmission with TCM technology for easy forward/backward operation
Japan hydraulic system using Shimadzu brand Valve and Pump
USA Eaton steering gear for reliable performance
USA CURTIS imported controller with global after-sale service
Intelligent charger included
Available in red, yellow, and green colors

Optional Features

German HOPPECKE battery
Side shifter
Solid tire
Fork extension
Fork positioner

Packaging Specifications

3-3.5 ton electric forklift package: 20GP container can hold 2 units, 40GP container can hold 5 units.

Technical Specifications

Specification	Unit	FB25
Characteristics - Power	-	battery
Capacity	kg	2500
Center of load	mm	500
Lifting height	mm	3000
Free lifting height	mm	145
Forks LWH	mm	107012545
Mast tilt angle Forward/Backward	.	6/12
Min. turning radius	mm	2245
Min. right angle stacking width	mm	3930
Min. right angle Aisle width	mm	2120
Min. ground clearance	mm	120
Overhead guard height	mm	2170
Height from seat to overhead guard	mm	1005
Front overhang	mm	475
Performance - Max. traveling speed (loaded)	km/h	13.5
Max. lifting speed (loaded/unload)	mm/s	280 \| 320
Gradeability	%	15
Dimensions - Overall length (without fork)	mm	2511
Overall width	mm	1225
Mast extended height (with bracket)	mm	4264
Mast lowered height	mm	2055
Chassis - Tire - Front	-	28*9-15-12PR
Chassis - Tire - Rear	-	18*7-8-14PR
Wheelbase	mm	1600
Tread width - Front/Rear	mm	1000/980
Curb weight - None-load	kg	4810
Powertrain - Battery - Voltage/Capacity	V/Ah	80/500
Motor - Traveling	KW	12
Motor - Lifting	KW	14
Controller	-	CURTIS
Control type	-	100%AC
Working pressure	Mpa	17.5

Manufacturer Information

We are China's top forklift manufacturer and logistic solution supplier, with 130,000 square meters production area, 30,000 units production capacity per year, and 5,000 sets export volume.

We have established a complete sales system focused on production, development, marketing, sales, and after-sale service.

Quality leading the future. Our forklift quality has won high praise from overseas clients. For any demands, welcome to inquire Nicole for more details.
