Product Details:
|
Model NO.: | FB35 | Lift Height: | 3000~7000mm |
---|---|---|---|
Condition: | New | Hydraulic System: | Japanese Shimadzu Brand Pump And Valves |
Steering Gear: | USA Eaton Brand Steering Gear | Controller: | USA Curtis Controller |
Chargere: | Shanghai Shineng Brand | Mast Type: | Duplex 3m/ Triplex Full Free 4.5m Mast |
Lifting Height: | From 3m To 7m | Battery: | China Lishi Brand |
Certificate: | Ce,Ghost,ISO | Charging Time: | Charging 10hours Can Use 8hours |
Side Shifter: | Can Be Customized | Transport Package: | Nude Package/ Container Delivery |
Specification: | (LxWxH): 2630x1225x2300mm | Trademark: | SNSC |
Origin: | China | HS Code: | 8427109000 |
Supply Ability: | 500units/Month | Cab Location: | Adjustable |
Type: | Electric Forklift | Power: | AC Motor |
Load Capacity: | 1T - 5T | Fuel: | Electric |
Load Center: | 500mm | Customization: | Available | Customized Request |
Highlight: | FB35 3500kgs Chariot Forklift,3500kgs Electric Chariot Forklift,Forklift With Side Shifter 1T |
Attribute | Value |
---|---|
Model NO. | FB35 |
Lift height | 3000~7000mm |
Condition | New |
Hydraulic System | Japanese Shimadzu Brand Pump and Valves |
Steering Gear | USA Eaton Brand Steering Gear |
Controller | USA Curtis Controller |
Charger | Shanghai Shineng Brand |
Mast Type | Duplex 3m/ Triplex Full Free 4.5m Mast |
Lifting Height | From 3m to 7m |
Battery | China Lishi Brand |
Certificate | Ce, Ghost, ISO |
Charging Time | Charging 10hours Can Use 8hours |
Side Shifter | Can Be Customized |
Transport Package | Nude Package/ Container Delivery |
Specification | (LxWxH): 2630x1225x2300mm |
Trademark | SNSC |
Origin | China |
HS Code | 8427109000 |
Supply Ability | 500units/Month |
Cab Location | Adjustable |
Type | Electric Forklift |
Power | AC Motor |
Load Capacity | 1T - 5T |
Fuel | Electric |
Load center | 500mm |
Customization | Available |

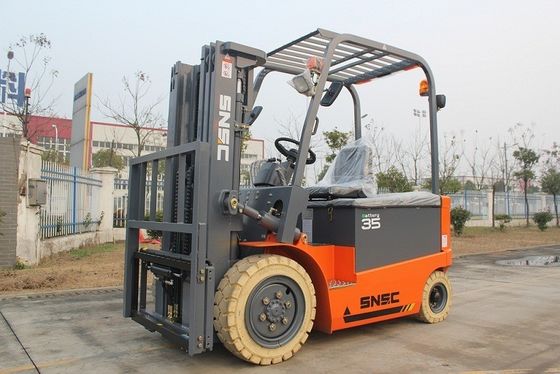

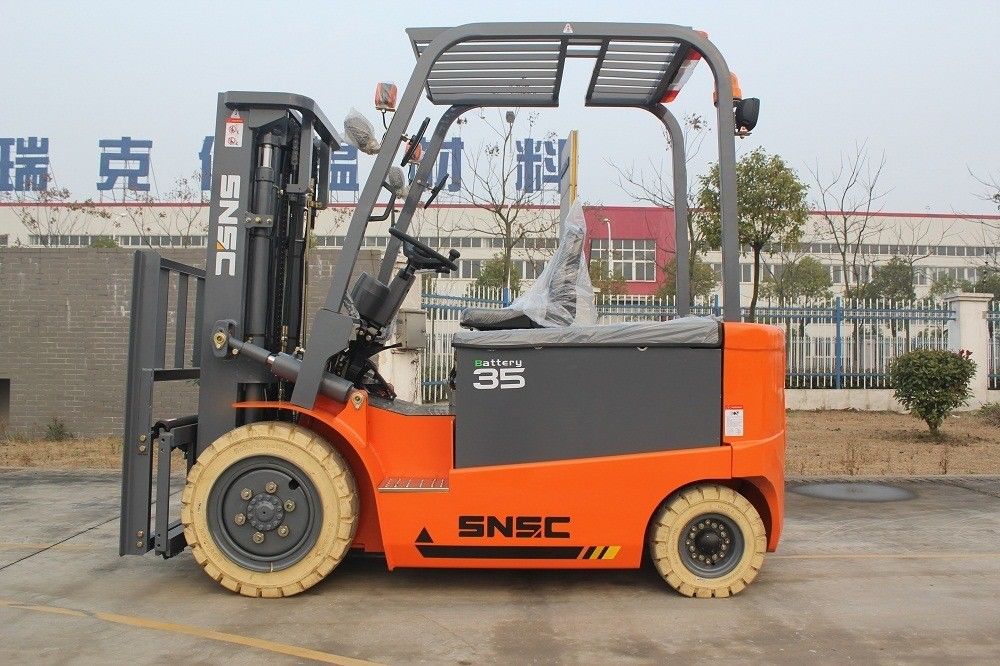

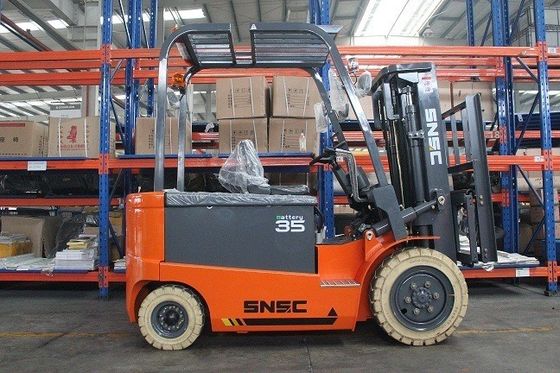

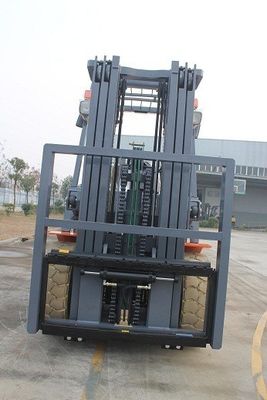

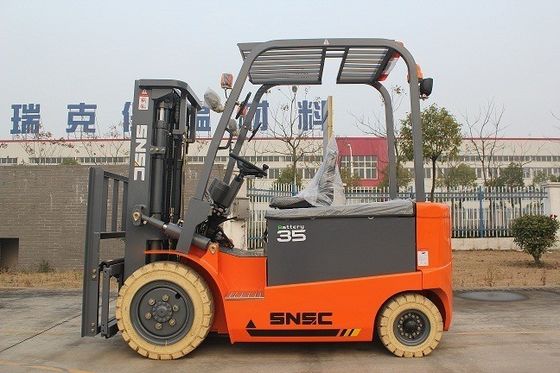

SNSC FB35 3.5 ton electric forklift truck has been successfully exported worldwide, including to Uzbekistan in December 2015. These units featured yellow color, solid tires, triplex full free 4.2m lifting height, side shifter, and warning light.
No. | Specifications | Unit | FB35 |
---|---|---|---|
1 | Characteristics | Power | battery |
2 | Capacity | kg | 3500 |
3 | Center of load | mm | 500 |
4 | Lifting height | mm | 3000 |
5 | Free lifting height | mm | 150 |
6 | Forks L×W×H | mm | 1070x125x50 |
7 | Mast tilt angle Forward/Backward | . | 6/12 |
8 | Min.turning radius | mm | 2385 |
9 | Min. right angle stacking width | mm | 4065 |
10 | Min. right angle Aisle width | mm | 2290 |
11 | Min.ground clearance | mm | 120 |
12 | Overhead guard height | mm | 2300 |
13 | Height from seat to overhead guard | mm | 1100 |
14 | Front overhang | mm | 485 |
15 | Max.traveling speed(loaded) | km/h | 13 |
16 | Max.lifting speed(loaded) | mm/s | 280 |
17 | Gradeability | % | 12 |
18 | Overall length (without fork) | mm | 2630 |
19 | Overall width | mm | 1225 |
20 | Mast extended height(with bracket) | mm | 4264 |
21 | Mast lowered height | mm | 2095 |
22 | Tire Front | 28x9-15 | |
23 | Tire Rear | 18x7-8 | |
24 | Wheelbase | mm | 1720 |
25 | Tread width Front/Rear | mm | 1000/980 |
26 | Curb weight None-load | kg | 5300 |
27 | Battery Voltage/Capacity | V/Ah | 80/560 |
28 | Motor Traveling | KW | 12 |
29 | Motor Lifting | KW | 14 |
30 | Controller | CURTIS | |
31 | Control type | 100%AC | |
32 | Working pressure | Mpa | 17.5 |
SNSC is among the top 3 forklift manufacturers in China and ranks in the top 20 globally. Our production facility spans 130,000 square meters with over 500 employees, capable of producing 30,000 units annually and exporting 5,000 sets.
"QUALITY LEADING THE FUTURE" is our core philosophy. We are committed to providing the highest quality forklift trucks to customers worldwide.
If you are interested in our SNSC forklift products, please contact Nicole for more information.
