Product Details:
|
Model NO.: | FL30 | Lift Height: | 3000~5000mm |
---|---|---|---|
Condition: | New | Product Name: | Promotion 3ton Gas LGP And Propane Forklift With N |
Free Lifting Height: | 135mm | Fork Size: | 1070*125*45mm |
Mast Tilt Angle: | 6/12 Degree | Min. Ground Clearance: | 120mm |
Overhead Guard Height: | 2090mm | Front Overhang: | 475mm |
The Turning Radius: | 2400mm | Transport Package: | Nude Package |
Trademark: | SNSC | Origin: | China |
HS Code: | 84270290 | Supply Ability: | 100 Sets Per Month |
Cab Location: | Not Adjustable | Type: | LPG Forklift |
Power: | LP Gas Engine | Load Capacity: | 1T - 5T |
Fuel: | Gasoline | Load Center: | 500mm |
Customization: | Available | Customized Request | ||
Highlight: | 3ton Propane Powered Forklift,Small Propane Forklift Lift Trucks,Propane Powered Forklift Small |
Specifications | Unit | FL30 | ||
Features | Power type | LP/Gasoline | ||
Rated load | kg | 3000 | ||
Load center | mm | 500 | ||
Lifting height | mm | 3000 | ||
Free lifting height | mm | 145 | ||
Fork size | L*W*T | mm | 1070*125*45 | |
Mast tilt angle | Front/Rear | . | 6/12 | |
Min. turning radius | mm | 2400 | ||
Min.ground clearance | Mast | mm | 120 | |
Overhead guard height | mm | 2090 | ||
Front overhang | mm | 475 | ||
Performance | Max. travelling speed | loaded | km/h | 20 |
Max. lifting speed | loaded | mm/s | 470 | |
Max. traction force | loaded | KN | 18 | |
Max. climbing ability | % | 20 | ||
Dimension | Overall length | without fork | mm | 2695 |
Overall width | mm | 1230 | ||
Mast lowered height | mm | 2055 | ||
Mast extended height | mm | 4265 | ||
Chassis | Tyre | Front | 28*9-15-12PR | |
Rear | 6.50-10-10PR | |||
Wheel base | mm | 1700 | ||
Wheel thread | Front/Rear | mm | 1000/970 | |
Weight(without load) | kg | 4350 | ||
Powertrain | Battery | V/AH | 12/90 | |

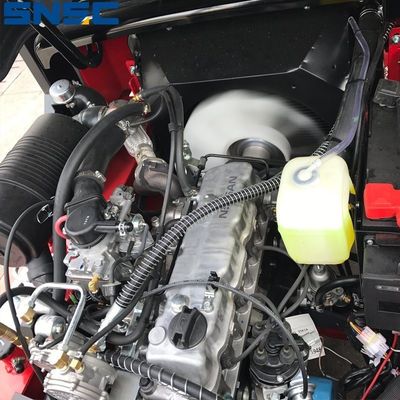

Engine | Model | nissan K25 | ||
Rated power | km/r.p.m | 37.4/2300 | ||
Rated torque | Nm/r.p.m | 176.5/1600 | ||
No. cylinder | 4 | |||
Bore x stroke | mm | 89X100 | ||
Displacement | L | 2.488 | ||
Fuel tank capacity | L | 70 | ||
Transmission/shift | 1/1 automatic transmission | |||
Operation pressure | Mpa | 17.5 |
