Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift

I'm Online Chat Now

Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift

Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift

Large Image :  Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift

Product Details:
Place of Origin: china
Brand Name: snsc
Certification: CE/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 6000-9000
Packaging Details: shipped by container
Delivery Time: 30-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500/Months

Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift

Description
Model NO.: FL35 Lift Height: 3000~5000mm
Condition: New Free Lifting Height: 145mm
Fork Size: 1070*125*50mm Mast Tilt Angle: 6/12 Degree
Min. Ground Clearance: 120mm Overhead Guard Height: 2090mm
Front Overhang: 475mm The Turning Radius: 2430mm
Transport Package: Nude Package Trademark: SNSC
Origin: China HS Code: 84270290
Supply Ability: 100 Sets Per Month Cab Location: Not Adjustable
Type: LPG Forklift Power: LP Gas Engine
Load Capacity: 1T - 5T Fuel: Gasoline
Load Center: 500mm Customization: Available | Customized Request
Highlight:

Customizable LP Gasoline Forklift

,

LP Gasoline Forklift Trucks

,

SNSC Warehouse Forklift

China LP gasoline forklift trucks machine warehouse forklift hot sale fork lift

Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 0
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 1
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 2
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 3
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 4

Details:
Japan NISSAN K25 Engine;
Japan SHIMADZU Hydraulic System(including pumps and valves and oil pipes);
Standard 2-stage 3m mast;
Electric Hydraulic Automatic Transmission by TCM technology;
Lamp protection;
Triangle wide view back mirror;
Waterproof overhead guard;
Backing buzzer and warning light;
Standard Pneumatic Tires


Common Options:
Solid Tires;
3m-7m duplex or triplex full free mast;

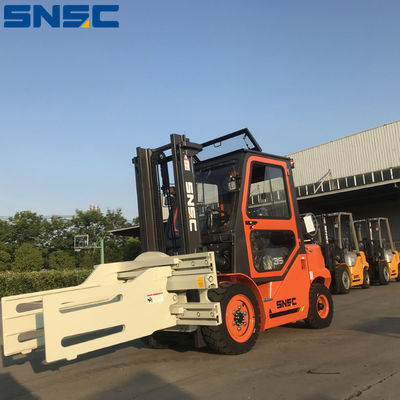

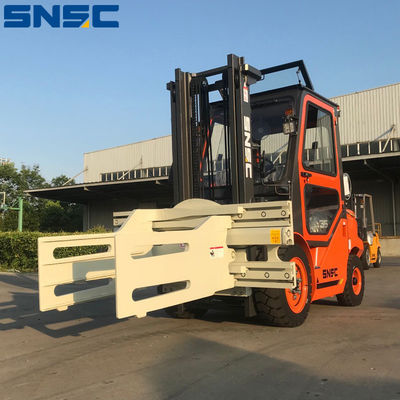

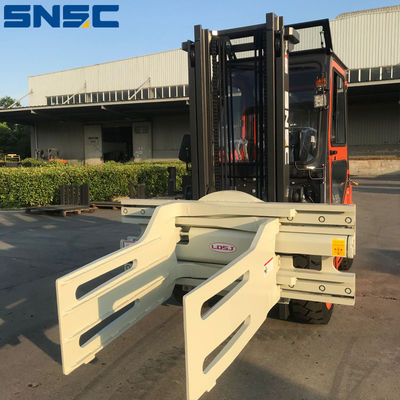

Attachments such as paper roll clamp, block clamp, bale clamp, bucket, etc;
Fully closed cabin with heater or air conditioner;
Side shifter and fork positioner;
Fully suspension luxury seat;
Double filter;
High exhaust;
Customized color except green, red and orange.


Specifications:
Specifications Unit FL35
Features Power type     LP/Gasoline
Rated load   kg 3500
Load center   mm 500
Lifting height   mm 3000
Free lifting height   mm 145
Fork size  L*W*T mm 1070*125*50
Mast tilt angle Front/Rear . 6/12
Min. turning radius   mm 2430
Min.ground clearance Mast mm 120
Overhead guard height   mm 2090
Front overhang   mm 475
Performance Max. travelling speed loaded km/h 20
Max. lifting speed loaded mm/s 410
Max. traction force loaded KN 18
Max. climbing ability   % 20
Dimension Overall length without fork mm 2725
Overall width   mm 1230
Mast lowered height   mm 2095
Mast extended height   mm 4265
Chassis Tyre Front   28*9-15-12PR
Rear   6.50-10-10PR
Wheel base   mm 1700
Wheel thread Front/Rear mm 1000/970
Weight(without load)   kg 4850
Powertrain Battery   V/AH 12/90
Engine Model   nissan K25
Rated power km/r.p.m 37.4/2300
Rated torque Nm/r.p.m 176.5/1600
No. cylinder   4
Bore x stroke mm 89X100
Displacement   L 2.488
Fuel tank capacity   L 70
Transmission/shift     1/1 automatic transmission
Operation pressure   Mpa 17.5

Details of 3.5Ton LPG Forklift FL35

Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 5
3.5Ton LPG Forklift Common Optionals:
Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner, duplex/ triplex full free mast
Cetifications:
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 6

Forklift Catalogue:
Diesel Forklift capacity is from 1.5 ton diesel forklift to 10 ton diesel forklift;
(FD15/FD20/FD25/FD30/FD35/FD40/FD45/FD50/FD60/FD70/FD80/FD100)
Electric Forklift capacity is from 1.5ton battery forklift to 3.5ton battery forklift;
(FB15/FB20/FB25/FB30/FB35)
LPG&Gasoline Forklift capacity is from 1.5ton LPG forklift to 3.5ton LPG forklift;
(FL15/FL20/FL25/FL30/FL35)
Wearhouse material handling equipments include Electric Pallet Truck (TB)/Electric Stacker(DB)/ Electric Reach Truck(YB)/Electric Tractor(QB).
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 7
Company Introduction:
We, SNSC, are top quality forklift manufacture in China, with 130,000 square meters production area, 30,000 units production capacity per year,5000 sets export volume.

We regarde  "Quality product, reasonable price, efficient production time and good after-sale servie" as our tenet."
Customizable LP Gasoline Forklift Trucks SNSC Warehouse Forklift 8

We hope to cooperate with more customers for mutual development and benifits. Welcome to contact us with your demands.
