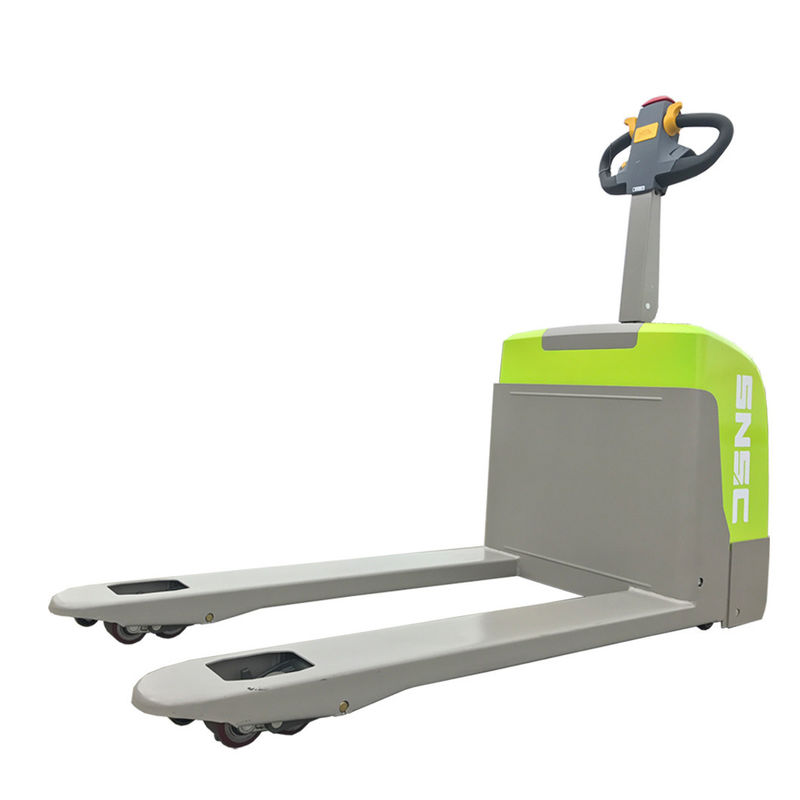

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green
Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green

Large Image :  Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green

Product Details:
Place of Origin: china
Brand Name: snsc
Certification: CE/ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD 6000-9000
Packaging Details: shipped by container
Delivery Time: 30-45 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500/Months
Contact Now

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green

Description
Model NO.: TB15
Highlight:

Lithium Battery Powered Pallet Jack

,

Battery Powered Pallet Jack 1.5ton

,

1.5ton Electric Pallet Truck

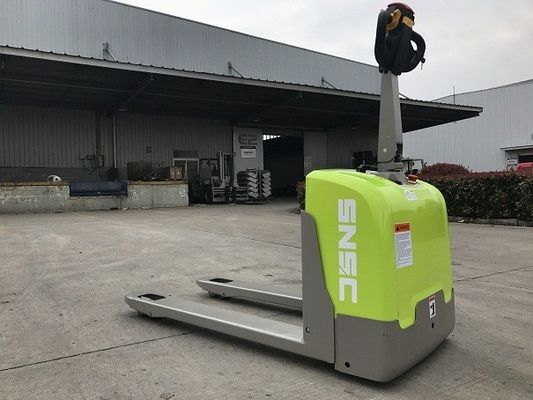

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green 0

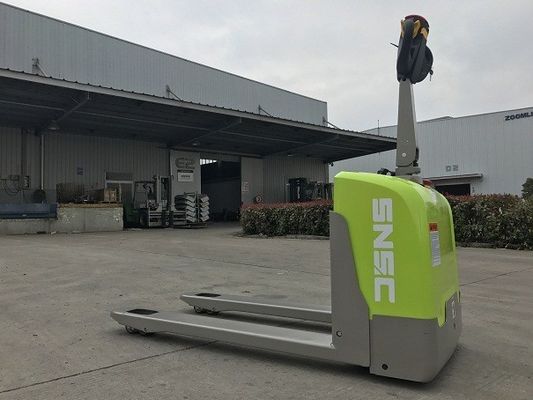

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green 1
Characteristics 1.1 model   TB15-WA1
1.2 drive   electric
1.3 operator type   stand
1.4 load  capacity  Q(kg) 1500
1.5 load centre c(mm) 500
1.6 front overhang x(mm) 916 937
1.7 wheel base  Y(mm) 1418 1488
weight 2.1 capacity(with battery) kg 535
2.2 axle loading ,laden(front/rear) kg 955/1580
2.3 axle loading ,unladen(front/rear) kg 430/105
wheels chassis 3.1 tyres type   polyurethane
3.2 wheel size (front)   Φ230×75
3.3 wheel size (rear)   Φ85×70/Φ83×115
3.4 additional wheels   Φ85×48
3.5 wheels ,number front/rear (x = drven wheels)   1X-2/4 / 1X-2/2
3.6 track width (front) b10(mm) 498
3.7 track width (rear) b11(mm) 370/430/515
/ 4.1 lifting height h3(mm) 120
4.2 height of tiller in driving position min/max h14(mm) 715/1200
4.3 height ,fork lowered h13(mm) 85
4.4 length l1(mm) 1748 1818
4.5 length to face of forks l2(mm) 598
4.6 width b1(mm) 710
4.7 fork dimentions  s/e/l(mm) 55/170/1150 55/170/1220
4.8 width across forks b5(mm) 540/600/685
4.9 ground clearance centre of wheelbase m2(mm) 30
4.10 aisel width,pallet 1000x1200(1200crossways) Ast(mm) 1815
4.11 aisel width,pallet 800x1200(1200lengthways) Ast(mm) 2015
4.12 turning radius  Wa(mm) 1595
Dimensions 5.1 travel speed ,laden/unladen Km/h 5.0/5.5
5.2 lifting  speed laden/unladen m/s 0.051/0.060
5.3 lowering speed , laden/unladen m/s 0.032/0.039
5.8 max.grade ability, laden/unladen % 8/16
5.1 service brake   electromagnetic
motor 6.1 drive motor power  kW 1.1
6.2 lift motor power kW 0.84
6.4 battery voltage/rated capacity V/Ah 24/210
6.5 battery weight Kg 190
others 8.1 type of dirve control    AC
8.2 soundlevel at the driver's sear according to DIN12053 dB(A) 74

PRODUCT DESCRPTIONS

Safe & Efficient
Handle brake function stop forklift on slope to prevent the coasts, reduce accident, the handle also features and emergency reverse swith, provides more secure operation;
Five fulcrum structure allows moving vehicles more secure.

Flexbile control
Super driving wheel the power braking are integrated concept, powerful, overall size reduction.
Amercian CURTIS  brand controller with contionucusly variable functions and complete protection responsive easly maniculated

Our Procuts

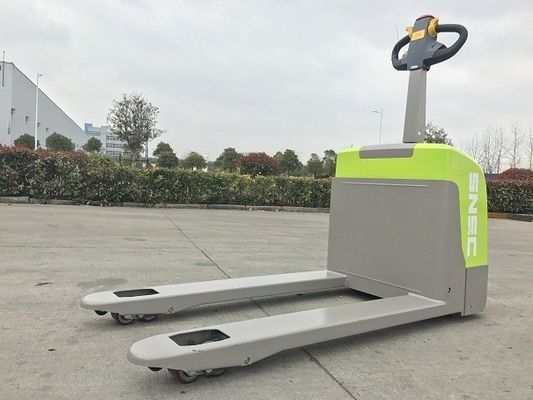

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green 2
We have all kinds of forklifts that can meet your needs.
I. Diesel forklift truck range from 1.5 to 16ton;(FD15/18/20/25/30/35/40/45/50/60/70/80/100/160)
II. Battery forklift truck range from 1.5 to 3.5ton;(FB15/20/25/30/35)
III.LPG and gasoline forklifts range from 1.5 to 3.5 ton;(FL15/20/25/30/35)
IV.warehouse equipment, like electric pallet truck, electric reach truck, electric stacker & electric trailer.(YB20,DB16,TB15)
V.4 *4 all wheel drive off-road forklift range from 2.5 to 10ton.

Packing & Delivery
2tons electric pallet will use container shipment  to delivery; one 20GP container can take10 pcs 1.5tons electric pallet;

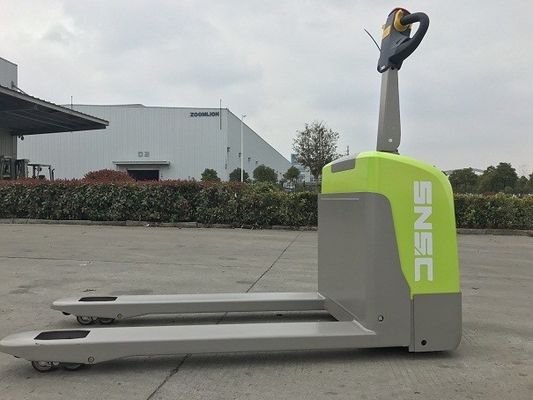

Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green 3

Chose us

We are first calss in Chinese forklift truck manufactures and top 20 in the world,with 130,000 square meters production area,over 500 employees,30,000 units forklift truc production capacity per year ,5000 sets export volume

 our R&D research is in Britain, and we invested over 600 million in forklift factory, use advanced equipments to realize over 90% automatic production, e.g.: welding robot.

Every forklift part is self produced; we have 5 series and over 200 models to meet customers' different demands, we can do all kinds of lifting height mast according your different working conditions
                                           Long history and stable factory background:
A history of over 24 years;
Technology ranks NO.1 in China;
Annual out put nearly 30,000 units.
High-quality and reliable products:
Upgrades for thousands of times to meet the demands of million of customers all over the world;
Three series to choose;
Other warehouse equipment to choose;
Better sale service of after-sale service:
Active and professional salesperson;
Warranty period of 1 years or 2000hrs, which occurs first;
Dispatch professional engineer to arrange training courses or after sale maintenance if necessary.


Lithium Battery Powered Pallet Jack 1.5ton Electric Pallet Truck Green 4
